Guide Locks

Product Description

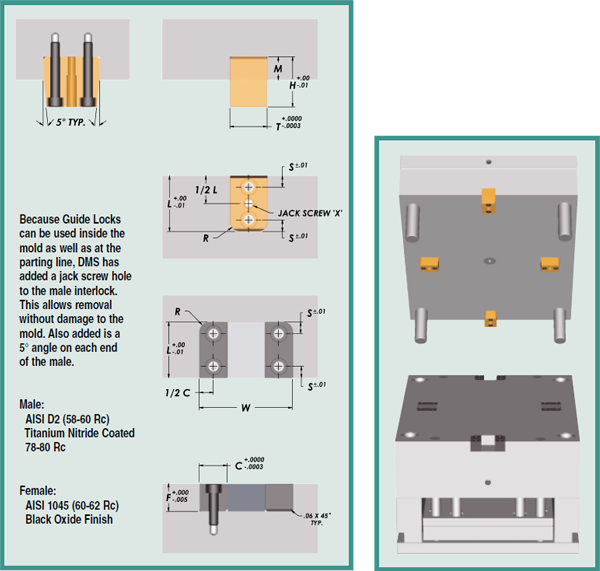

Catalog Number	W +.000 -.010	L +.000 -.010	T +.0000 -.0003	H +.000 -.010	M	C +.0000 -.0003	F +.000 -.005	S +.010 -.010	R	X Jack Screw	SHCS
Catalog Number	W +.000 -.010	L +.000 -.010	T +.0000 -.0003	H +.000 -.010	M	C +.0000 -.0003	F +.000 -.005	S +.010 -.010	R	K	MALE (2)	FEMALE (4)
GL-1.5	1.500	1.000	.500	.850	.375	.500	.500	.250	.187	#6-32	#10-32 X 1”	#10-32 X 5/8
GL-2.5	2.500	1.500	1.000	1.350	.625	.750	.750	.310	.250	1/4-20	1/4-20 X 1-1/2	1/4-20 X 7/8
GL-3.5	3.500	2.000	1.500	1.730	.750	1.000	1.000	.440	.375	3/8-16	3/8-16 X 2”	3/8-16 X 1-1/4
GL-4.5	4.500	2.500	2.000	2.100	.875	1.250	1.250	.560	.500	3/8-16	1/2-13 X 2-1/4	1/2-13 X 1-1/2
