Micro Date Stamp Ø 3mm

Ideal for limited spaces due to their small size.

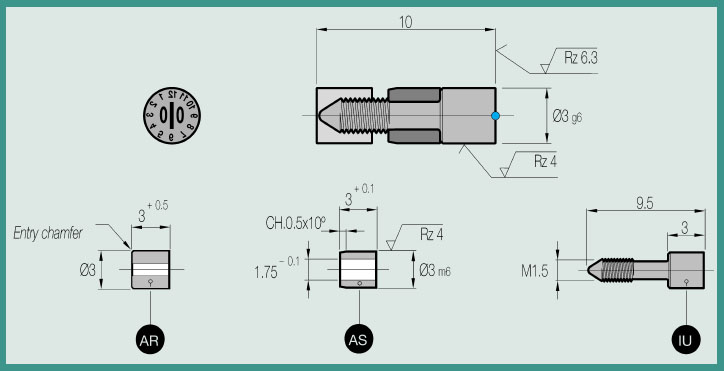

Material is INOX.1.4034 – 48-54HRC
Maximum working temperature is 150°C

Product Description

Blank	12 Months/ Year	12 Months/ No Year	Blank	12 Months/ Year	12 Months/ No Year

MDA031000	1MDA031012-__ __	MDA03101SF	IU031000	1IU031095-__ __	IU0310SF

When ordering add the year required to the part number (MDA031012-06)

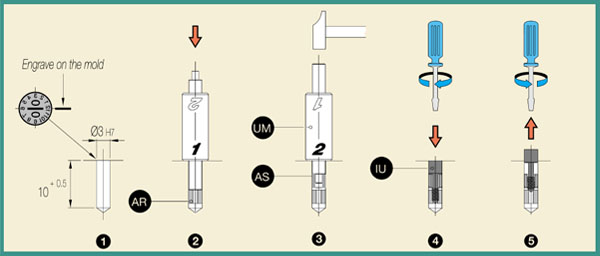

1 – Machine pocket and mark reference point or line on cavity.
2 – Insert Retention Ring (AR) with Mounting Jig (UM) position 1.
3 – Drive fit Support Ring (AS) with Mounting Jig (UM) position 2.
4 – Screw in the Unit Insert (IU).
5 – Unscrew the Unit Insert (IU) to change the year.
