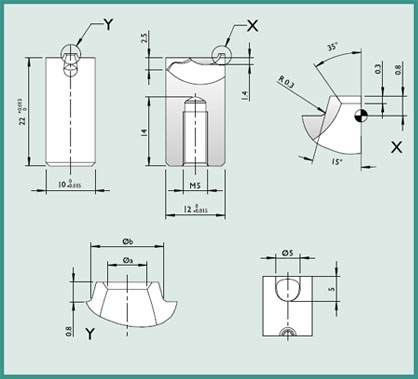

Cashew Gate Inserts Ø 12mm For shot weights up to 70g

  • Manufactured with a flat gate point allowing minor contour machining at the gate point.

Product Description

a b ~40 HRC ~60 HRC
1,2 n/a TGR12-12-S1-U TGR12-12-S1-H
1,6 n/a TGR12-16-S1-U TGR12-16-S1-H
2,0 n/a TGR12-20-S1-U TGR12-20-S1-H

S2 Series

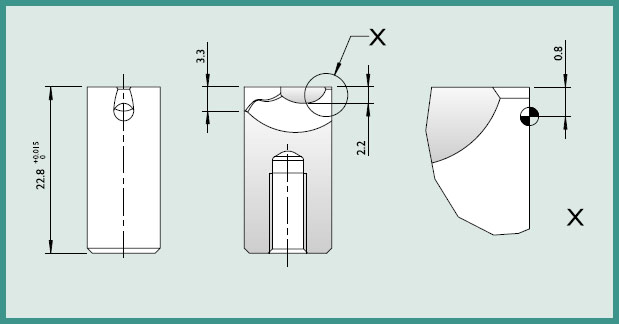

  • Manufactured with a raised lip ‘X&Y’ at the gate point creating a tear mark below the surface of the part.
a b ~40 HRC ~60 HRC
1,2 2,6 TGR12-12-S2-U TGR12-12-S2-H
1,6 3,0 TGR12-16-S2-U TGR12-16-S2-H
2,0 3,4 TGR12-20-S2-U TGR12-20-S2-H

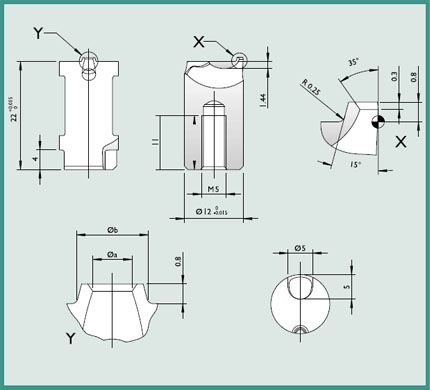

Cashew Gate Inserts 12mm For shot weights up to 70g

S1 Series

a b ~40 HRC ~60 HRC
1,2 n/a TGR12-12-S1-U TGR12-12-S1-H
1,6 n/a TGR12-16-S1-U TGR12-16-S1-H
2,0 n/a TGR12-20-S1-U TGR12-20-S1-H
a b ~40 HRC ~60 HRC
1,2 n/a TGS12-12-S1-U TGS12-12-S1-H
1,6 n/a TGS12-16-S1-U TGS12-16-S1-H
2,0 n/a TGS12-20-S1-U TGS12-20-S1-H
  • Manufactured with a flat gate point allowing minor contour machining at the gate point.

S2 Series

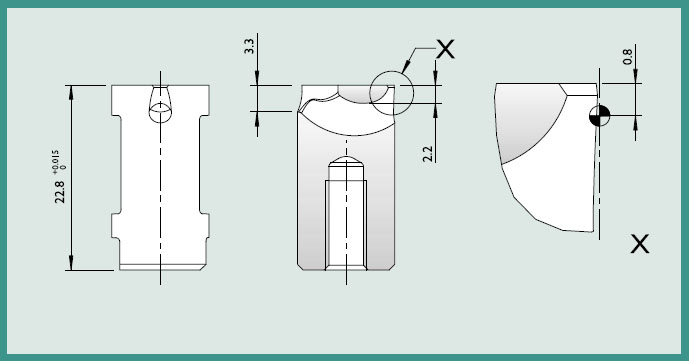

  • Manufactured with a raised lip ‘X&Y’ at the gate point creating a tear mark below the surface of the part.
a b ~40 HRC ~60 HRC
1,2 2,6 TGS12-12-S2-U TGS12-12-S2-H
1,6 3,0 TGS12-16-S2-U TGS12-16-S2-H
2,0 3,4 TGS12-20-S2-U TGS12-20-S2-H
