EDM filters up to ø 150 mm

Product Description

Recommendations / Standards

Manufacturer	Respective MANN+HUMMEL EDM filters
AEG	H 15 135 N, H 15 135 PN, H 15 190, H 15 190/10
Agema	H 15 190, H 15 190/10
Agemaspark	H 1096
Agie + Charmilles	H 15 190/1, H 15 190/16, H 15 190/25, H 15 475/1, H 15 190/10, E-Line, H 15 190/6, H 15 190, H 15 190/12
BES	H 15 190, H 15 190/10
Deckel	H 15 190, H 15 190/10, H 15 190/16, E-Line
EMV Erodiermaschinen	H 15 190, H 15 190/10
Hostek	H 15 190, H 15 190/10, H 15 190/16, E-Line
OPS-Ingersoll	H 15 190, H 15 190/10, H 15 190/16, E-Line
Japax	H 15 190, H 15 190/10, H 15 190/16, E-Line
Jiten	H 15 190, H 15 190/10, H 15 190/16, E-Line
Multiform	H 15 190, H 15 190/10, H 15 190/16, E-Line
Nassovia	H 15 190, H 15 190/10, H 15 190/16, E-Line
Sinitron	H 15 190, H 15 190/10, H 15 190/16, E-Line
Seibu-Walter	H 15 190, H 15 190/10, H 15 190/16, E-Line
Zimmer+Kreim	H 15 190, H 15 190/10, H 15 190/16, E-Line

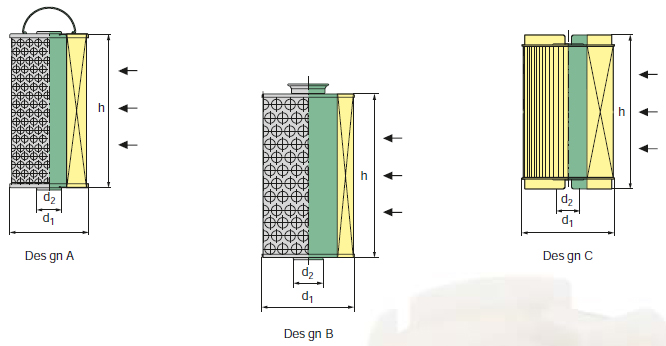

Order no.	Design	Filter surface area in cm2 [in ft2	Dimensions in mm [dimensions in inches]			Filter fineness [μm]	Flow direction
Order no.	Design	Filter surface area in cm2 [in ft2	d1	d2	h	Filter fineness [μm]	Flow direction
H 10962)	A	9 300 [10]	100 [3.9]	22 ¹⁾ [0.9]	202 [8.0]	3 – 5	outside to inside
H 15 135 N	B	17 900 [19]	150 [5.9]	32 ¹⁾ [0.9]	252 [9.9]	10	outside to inside
H 15 135 PN	B	21 200 [23]	150 [5.9]	32 ¹⁾ [0.9]	252 [9.9]	3 – 5	outside to inside
H 15 190	B	20 500 [22]	150 [5.9]	32 ¹⁾ [0.9]	364 [14.3]	10	outside to inside
H 15 190/1	C	28 100 [30]	150 [5.9]	32 ¹⁾ [0.9]	375 [14.8]	1 – 2	outside to inside
H 15 190/6	B	27 500 [30]	150 [5.9]	32 ¹⁾ [0.9]	364 [14.3]	3 – 5	outside to inside
H 15 190/10	C	27 520 [30]	150 [5.9]	32 ¹⁾ [0.9]	375 [14.8]	10	outside to inside
H 15 190/12	B	21 600 [23]	150 [5.9]	32 ¹⁾ [0.9]	364 [14.3]	25	outside to inside
H 15 190/16	C	31 000 [33]	150 [5.9]	32 ¹⁾ [0.9]	375 [14.8]	3 – 5	outside to inside
H 15 190/25	C	23 020 [25]	150 [5.9]	32 ¹⁾ [0.9]	375 [14.8]	25	outside to inside
E-Line	C	27 000 [29]	150 [5.9]	32 ¹⁾ [0.9]	375 [14.8]	3 – 5	outside to inside
H 15 475	B	47 000 [51]	150 [5.9]	32 ¹⁾ [0.9]	364 [14.3]	3 – 5	outside to inside
H 15 475/1	C	45 320 [49]	150 [5.9]	32 ¹⁾ [0.9]	375 [14.8]	3 – 5	outside to inside
