Conventional paper filters from 3 – 5 μm

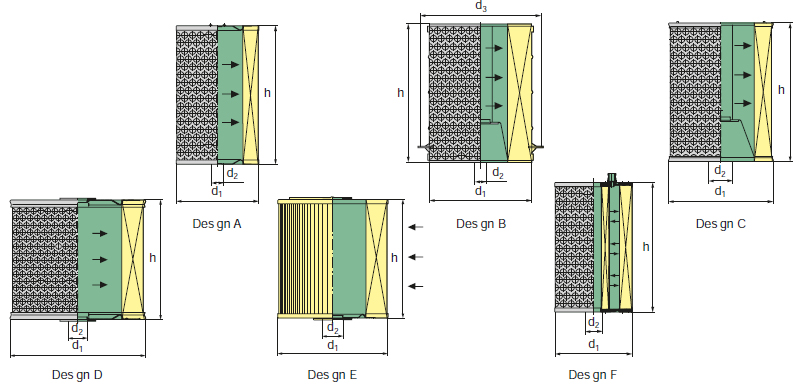

Order no.	Design	Filter surface area in cm² [in ft²]	Dimensions in mm [dimensions in inches]				Flow direction
Order no.	Design	Filter surface area in cm² [in ft²]	d₁	d₂	d₃	h	Flow direction
H 26 644/1 ¹⁾	E	53 700 [58]	261 [10.3]	46 [1.8]	–	280 [11.0]	outside to inside
H 31 967	A	95 300 [103]	302 [11.9]	29 [1.1]	–	507 [20.0]	inside to outside
H 31 967/1 ³⁾	A	95 300 [103]	302 [11.9]	29 [1.1]	–	507 [20.0]	inside to outside
H 31 1033/3	F	99 125 [107]	302 [11.9]	54 [2.1]	–	503 [19.8]	inside to outside
H 34 1070	D	107 000 [115]	340 [13.4]	45.5 [1.8]	–	300 [11.8]	inside to outside
H 34 1070/9 ³⁾	D	107 000 [115]	340 [13.4]	45.5 [1.8]	–	300 [11.8]	inside to outside
H 34 1158/4	C	145 000 [156]	340 [13.4]	45.5 [1.8]	–	450 [17.7]	inside to outside
H 34 1158/8 ³⁾	C	145 000 [156]	340 [13.4]	45.5 [1.8]	–	450 [17.7]	inside to outside
H 34 1790/3 ²⁾	B	145 000 [156]	340 [13.4]	47.5 [1.9]	404 [15.9]	450 [17.7]	inside to outside
